Overview:

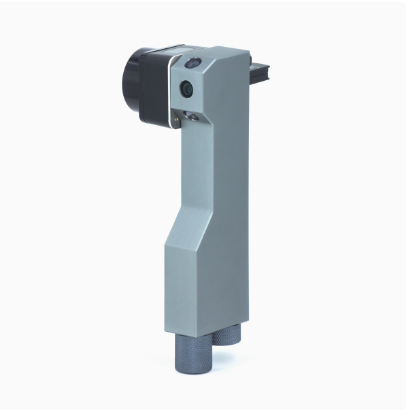

Xphase Scan 3D panoramic camera is developed Based on Xphase Scan, DTOF laser radar is added, with the maximum distance of 25m, an error of plus or minus 2CM within 8 meters, 21,600 points per second, and a 3D model of the scene can be obtained in about 70 seconds at
the fastest. It supports the output of point cloud, OBJ file and depth map. It supports viewing the plane map and measuring the distance between any two points in the panoramic browsing interface.
With 3 Xphase Pro The same 8-megapixel camera as the X2 can take panoramic photos with a resolution of 16384*8192.
With Xphase Compared with the Pro panoramic camera, the scanning shooting parallax is smaller, so it is less likely to have seams and distortion when shooting indoor scenes. The safe distance is 0.3 meters, which is suitable for shooting in smaller spaces.
The advanced HDR algorithm seamlessly combines 3 or 6 consecutive photos with exposure parameters differing by up to 7EV per shot, greatly improving the dynamic range
Supports iOS, Android, Windows and Mac platforms. You can use your mobilephone, tablet or computer to remotely control the camera via WIFI and browse in real time.
It supports uploading panoramic photos to the cloud, sharing them through WeChat Moments and Weibo, or embedding them into your own web pages.
Supports making panoramic tours and displaying them in the cloud. The bottom-fill shooting mode can completely hide the tripod and generate a panoramic image with no blind spots and no shooting traces. When the bottom is not filled, the bottom blind spot angle is about 24 degrees in diameter and can be covered with a custom logo.
Replaceable battery design, use external charger. You can carry multiple sets of batteries without worrying about power issues.
It can generate panoramic images in 16-bit PNG or DNG format, configure white balance and contrast, and choose to output the original color of the sensor (similar to the RAW format of SLR cameras), which is convenient for post-processing through tools such as Photoshop.
Specifications:
Dinmension: 45mm*57.5mm*165mm
Shell: CNC
Weight: 321g
Color: Grey
Camera module
sensor: 3 x 8MP back-illuminated sensors
Sensor size: 1/3.2 inches
aperture: F2.2
Image Format File format: JPG / PNG (16-bit)/ DNG / PNO
Image size: 16384 * 8192
Shooting mode: Auto/ Manual
Shooting parameters
Shutter speed: 1/4000s - 2s
ISO: 100
HDR mode: 3 (-2~2EV)/ 6 (-3~2EV)/ 6+(-5~2EV)
Anti-strobe: Off/ 50Hz / 60Hz
Exposure compensation: -3EV – +3EV (in 1/3EV intervals)
Time Lapse: Off / 1s / 2s / 5s / 10s / 15s / 20s
Minimum shooting distance: 0.3m
Postprocessing parameters
White balance: Auto/ White wall/ 3000K~7000K
Brightness: 0 / +1 / +2 / +3 / +4 / +5
Contrast: 0 / +1 / +2 / +3 / +4 / +5
Tone Mapping: Off / +1 / +2 / +3 / +4 / +5
Level correction: Off/ Use built-in gyroscope
Measuring range: 0.1~25m (80% reflectivity)
Radar parameters
Distance measurement accuracy: ± 20mm@2m~8m,
STD15mm
Ranging frequency: 21600 points/second
Ambient light resistance: Maximum 60000 Lux
Laser wavelength: 905nm
Safety standard: Class I laser
Point cloud density: 1.08M (Fast) / 4.32M points (Fine)
Modeling parameters
Scan time: 50s (Fast) /100s (Typical) / 200s (fine)
Vertical angle resolution: 0.167 degrees
Output format: OBJ / PTS / Depth map (16 bit) / PNO
(proprietary format)
Power supply
Battery: 3500mAh replaceable lithium-ion battery
Shooting time: 1.5 hours (about 150 photos)
You can purchase more batteries
Charging current: 1.0A (5V)
Charging time: about 4 hours
Storage
USB flash drive type: SanDisk USB3.1 USB flash drive
USB flash capacity: 32GB, optional 64GB/128GB/256GB
Storage quantity: 250 photos (32G, HDR3)
Interface
USB interface: USB2.0 Host
WIFI interface: IEEE 802.b/g/n
Fixed interface: 1/4 inch standard tripod interface
