Product introduction:

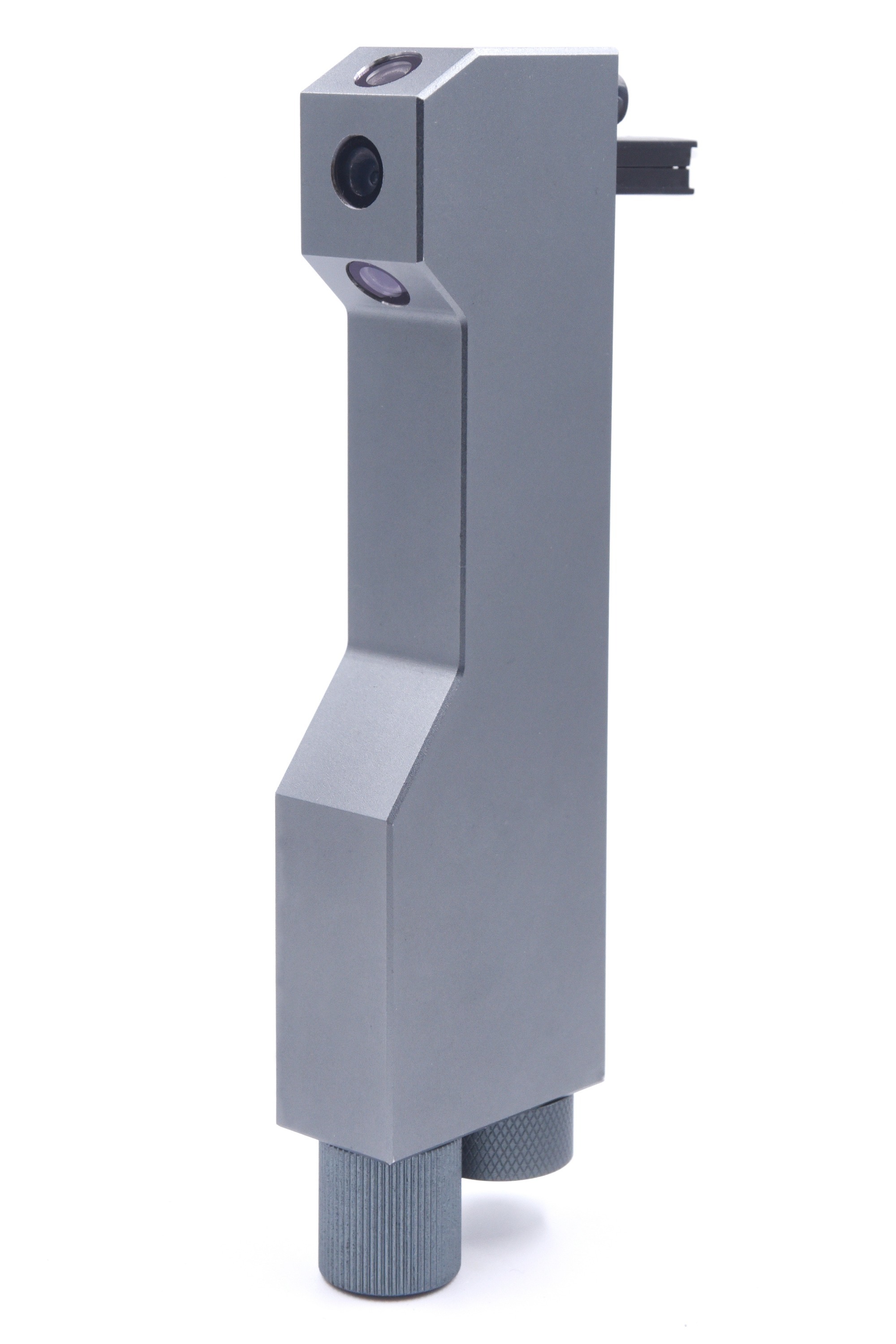

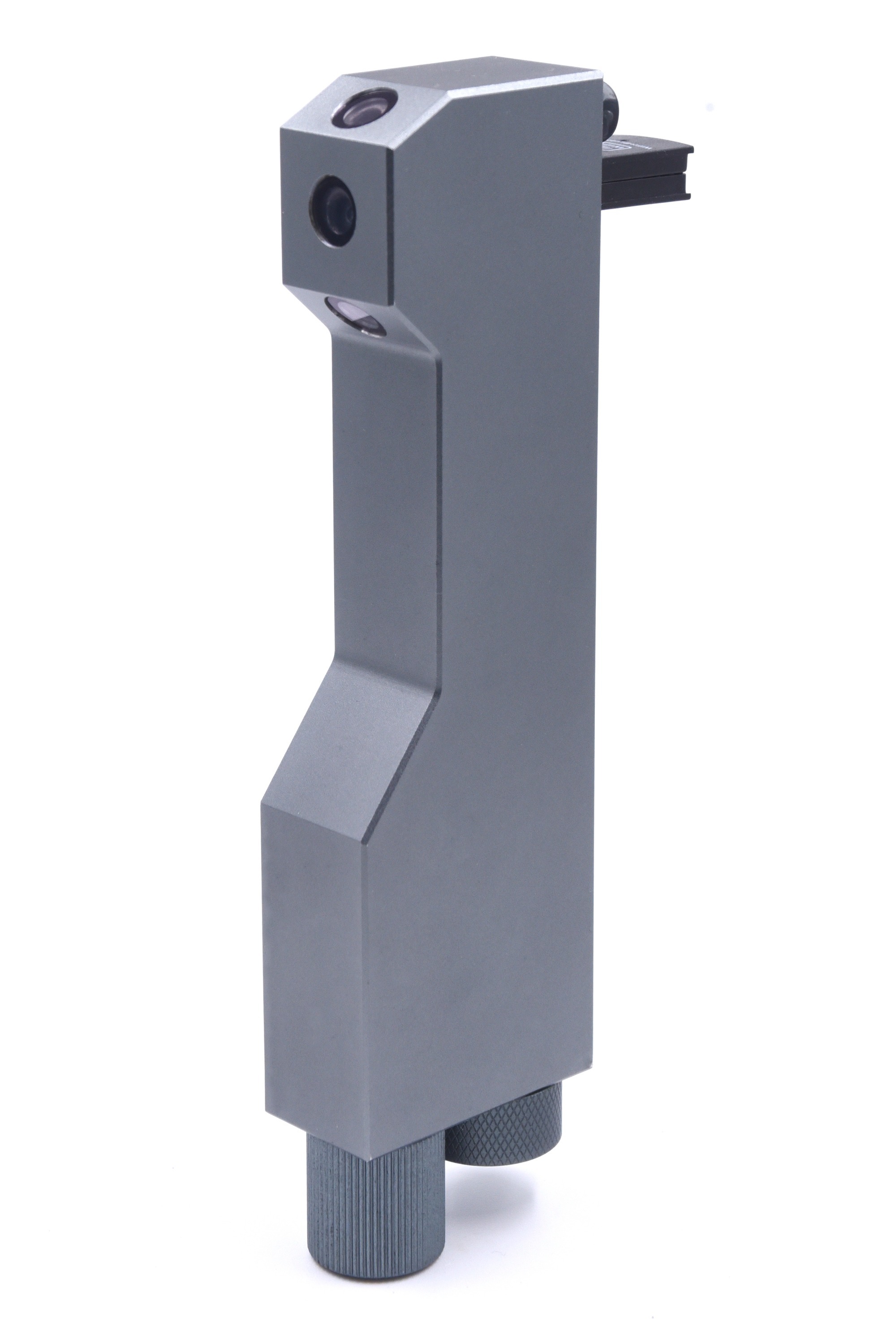

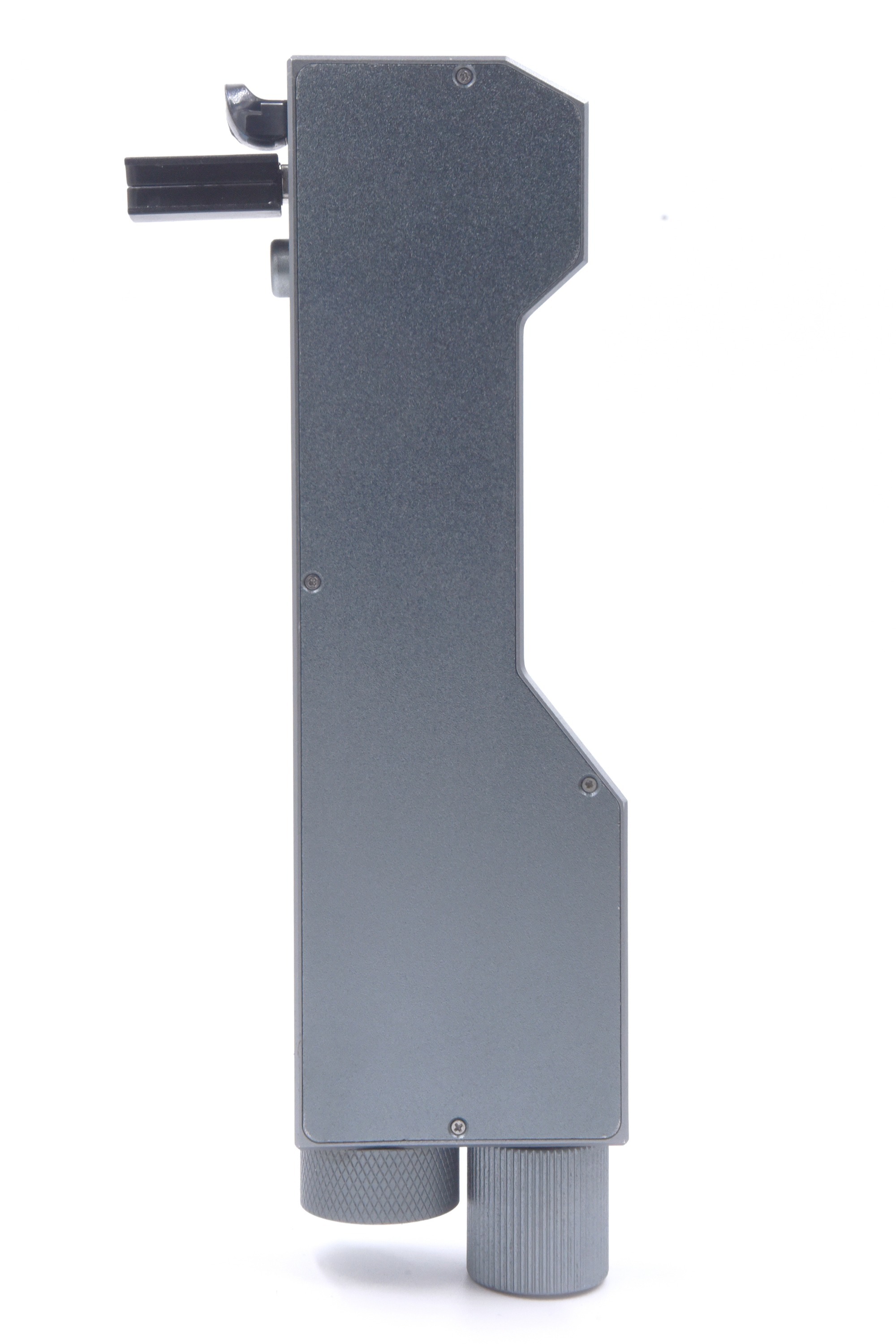

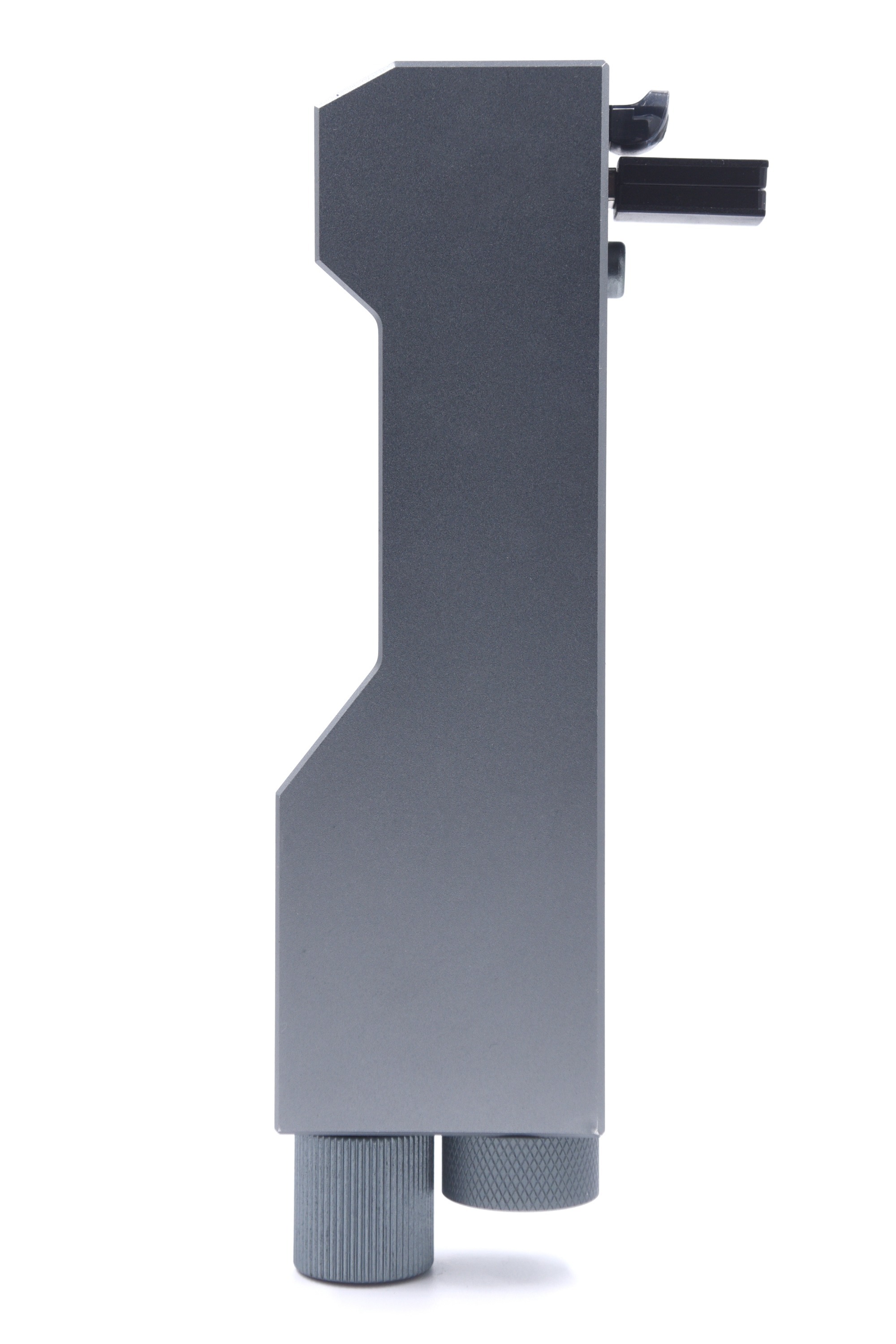

Xphase Scan panoramic camera comes with 3* 8-megapixel lenses module, users can take panoramic photos of the resolution 16384*8192. Compared to the Xphase Pro series panoramic camera, the parallax of scanning photography is smaller, so it is less prone to seams and distortion when shooting indoor scenes.
The safety distance of Xphase Scan camera is 0.3 meter, which is suitable for shooting in smaller spaces.The advanced HDR algorithm seamlessly combines the photos of three consecutive exposure parameters produced by each shot, greatly improving the dynamic range.
Xpahse Scan camera supports iOS, Android, Windows and Mac platforms, which can be controlled by WIFI remotely with mobile phone, tablet or laptop and browse in real time.
Easily create panoramic roaming and add photo text hotspots with the companion panoramic roaming authoring tool. The algorithm automatically identifies and correlates adjacent scenes to reduce manual configuration effort; and the algorithm can generate smooth and natural scene transition effects through fully automated 3D modeling.
Xphase Scam camera supports uploading panoramic photos and panoramic roaming to the cloud, sharing it on social media or embedding it into your own webpage.
The Fill-up shooting mode can completely hide the tripod and generate a panorama with no blind spots and no shooting traces. When the bottom is not filled, the diameter of the blind area at the bottom is about 24 degrees, and the logo can be customized.
With replaceable battery design and external charger, users can carry multiple sets of batteries without worrying about the power supply.
Xphase Scan camera can generate 16-bit PNG or DNG format panoramic photos, white balance and contrast can be configured, and the original color of the sensor can be selected (similar to the SLR camera RAW format) for post-processing through tools such as Photoshop.
Specifications:
Dimension: 45mm*22.5mm*165mm
Housing: CNC One-piece aluminum alloy shell, Sand blast anodizing process
Weight: 271g
Color: Grey
Camera Module
Sensor: 3*8 megapixel back-illuminated sensors
Sensor size: 1/3.2 inch
Aperture: F2.2
Image format: JPG / PNG (16 bit) / DNG/PNO (private format)
Image size: 16384 * 8192
Camera setting
Shutter speed: 1/4000s - 2s
ISO: 100
HDR mode: 3HDR(-2 – 2EV)/6HDR(-3 – 2EV)/6HDR(-5 – 2EV)
Anti-flicker: Close/50Hz/60Hz
Exposure compensation: -3EV - +3EV (at 1/3 EV intervals)
Selftimer: None/1 second/2 seconds /5 seconds / 10 seconds / 15seconds/ 20 seconds/30 seconds
Minimum shooting distance: 0.3m
Post Production
White balance: Auto / White Wall / 3000K~7000K
Luminance: 0 /+1 /+2 /+3 /+4 /+5
Contrast: 0 /+1 /+2 /+3 /+4 /+5
Tone Map: No/+1 /+2 /+3 /+4 /+5
(Horizontal correction) Level: Close / Built-in gyroscope to horizontally correct
Power supply
Battery: 3500mAh replaceable lithium-ion battery
Working time: 2 hours (about 250 photos)
For longer shooting, you can purchase additional power supply accessories for continuous shooting.
Charging current: 1.0A (5V)
Storage
U disk type: CZ43 cool bean USB3.1 mini U disk
U disk capacity: 32GB standard, optional 64GB/128GB
Storage quantity: 250 sheets (32G) / 500 sheets (64G) / 1000 sheets (128G)
Interface
USB interface: USB2.0 Host
WIFI interface: IEEE 802.b/g/n
Mounting: 1/4" standard tripod mount
Standard Package:
Xphase Scan camera * 1
32GB USB drive * 1
Wi-Fi USB dongle * 1
1/4-20 to 3/8-16 adapter / mini extension rod * 1
18650 battery * 1
18650 battery charger * 1
USB cable (Micro USB) * 1
USB charger (0.6A, autovolt 100/240V) * 1
Waterproof hard case * 1
