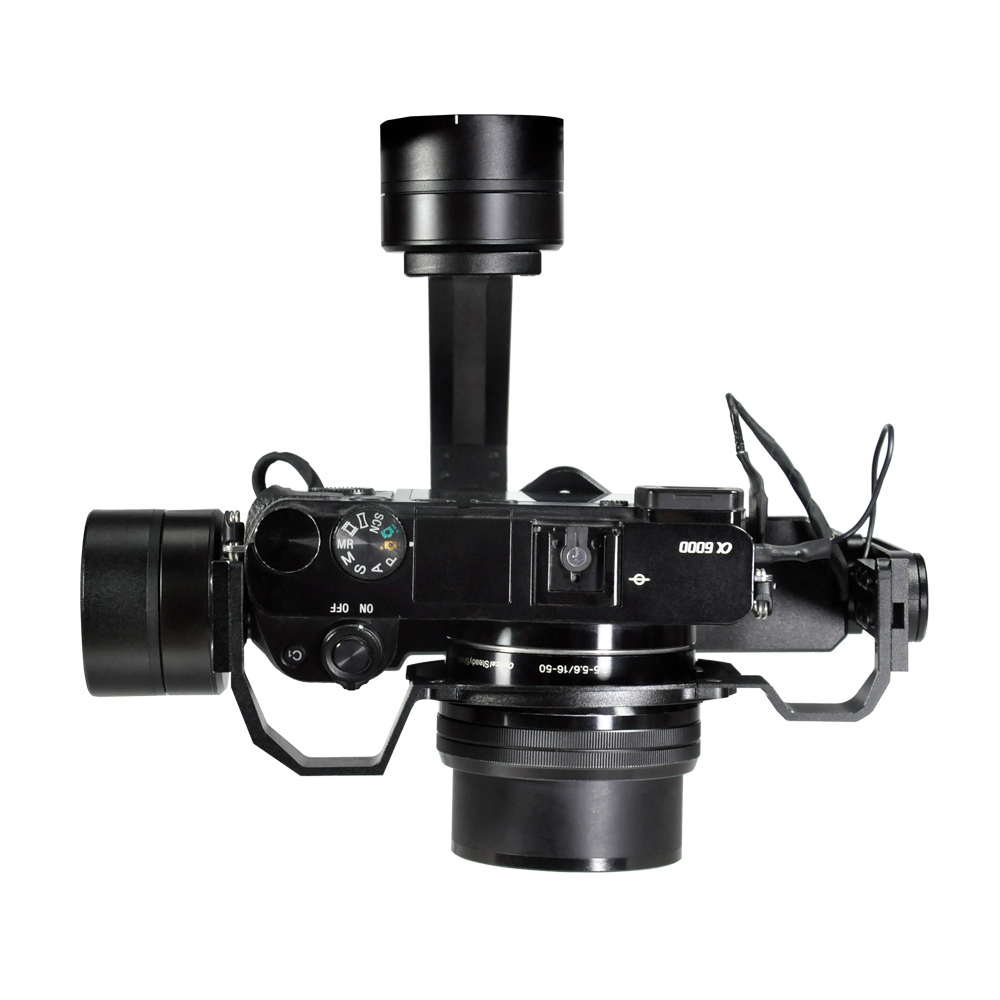

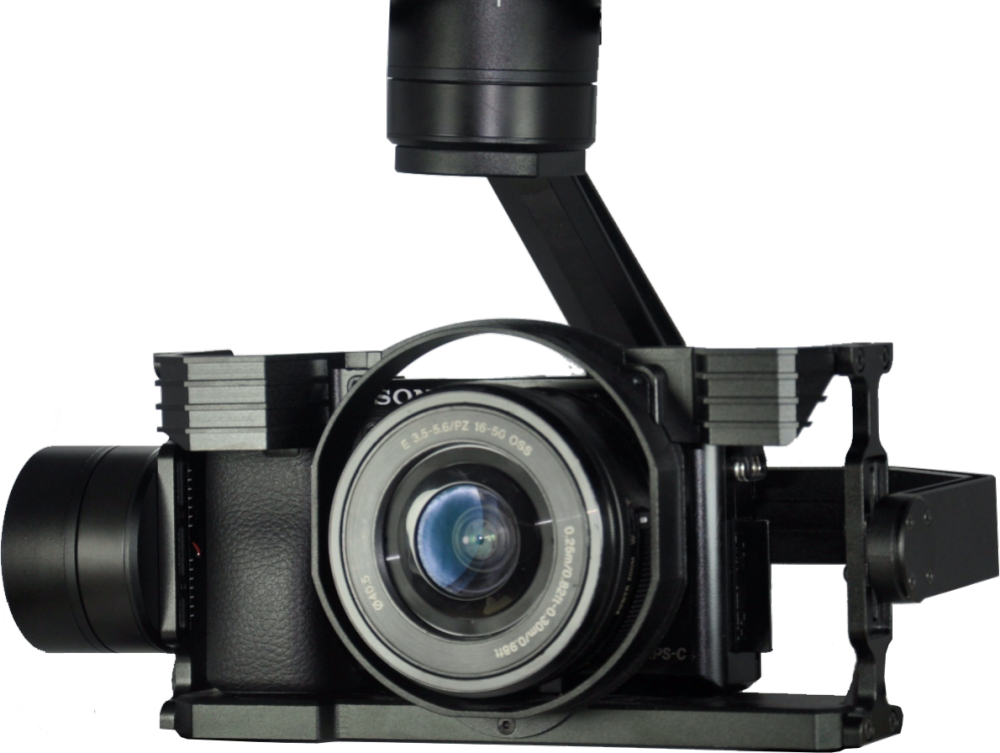

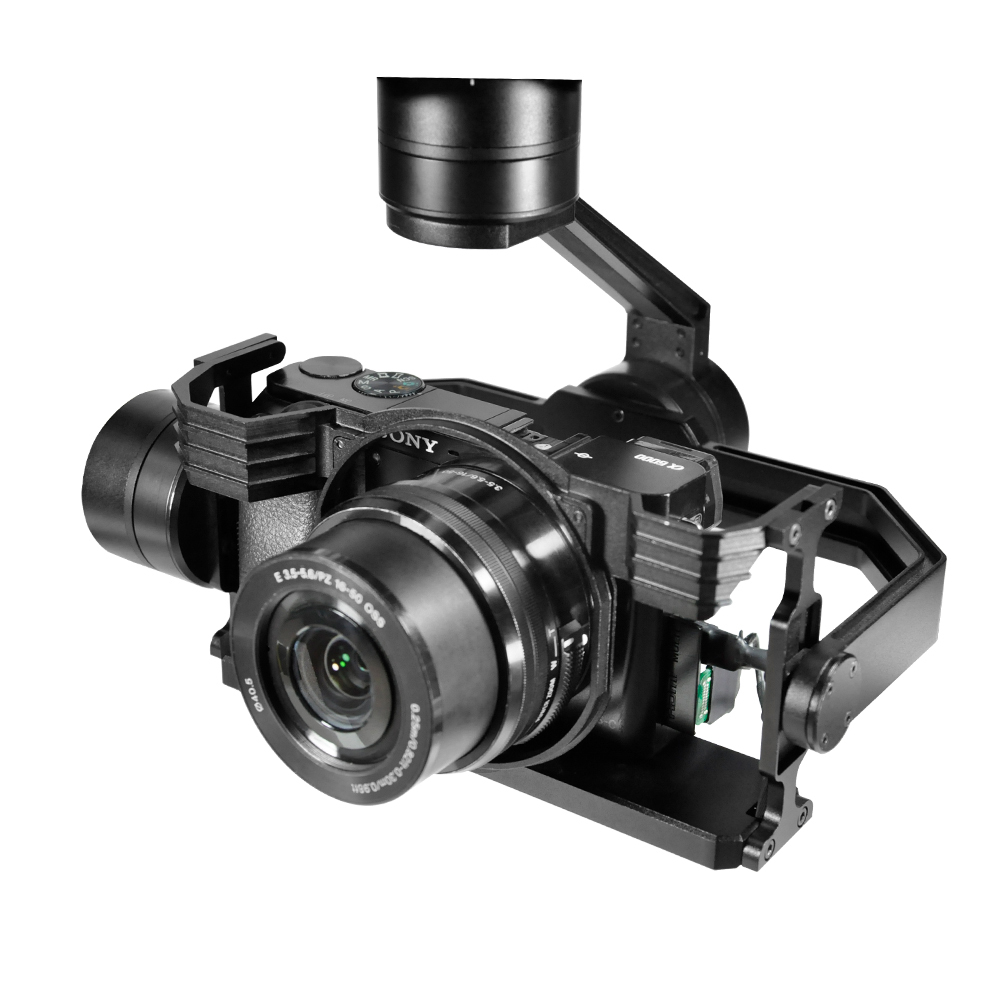

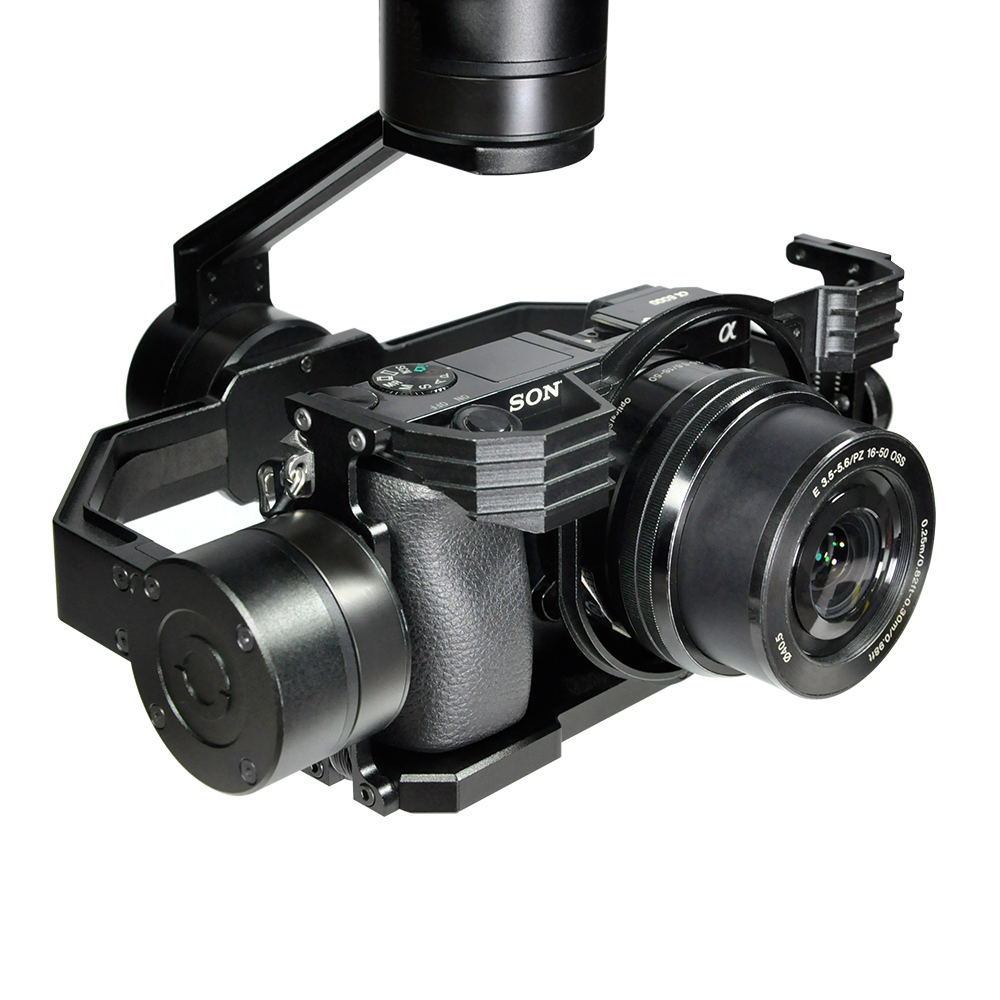

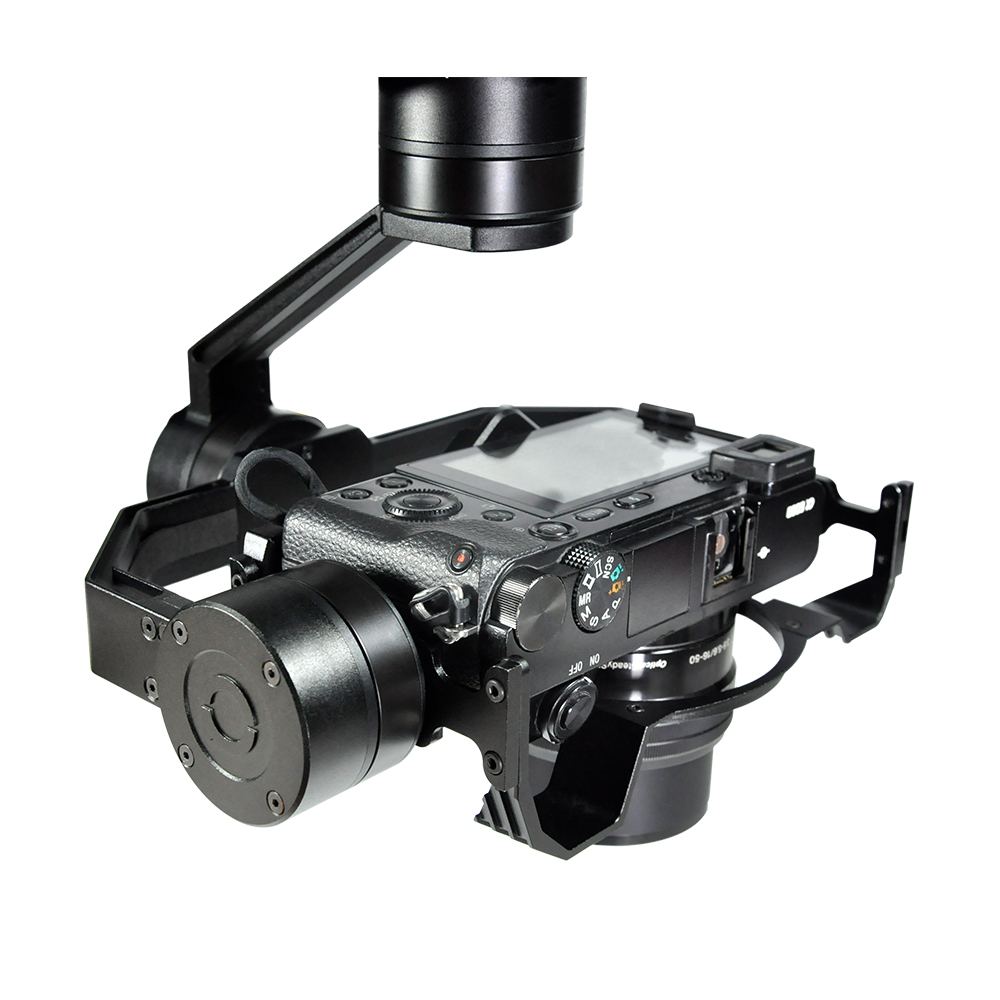

PZA6S Zoom Gimbal For Sony A5000/A6000/A7R Series Cameras

PZA6S is a professional 3 axis stabilizer gimbal specially designed for Sony A5000/A6000/A7R series cameras which features high stability,small size,  light weight and low power comsuption.
(20 available)
Please select the information you wantX
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews
Product Overview:
PZA6S is a professional 3 axis stabilizer gimbal specially designed for Sony A5000/A6000/A7R series cameras which features high stability,small size,  light weight and low power comsuption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor.
PZA6S not only comes with basic gimbal funtions like Yaw and Pitch axis control,but also other more important camera controls including zoom,record,trigger,camera power on/off etc. These multi functions makes PZA6S very useful for different industrial applications which you need both camera zooming and high definition photos,such as power line and infrastructure inspection.
Another important feature is that the speed of PZA6S gimbal is adjustable, LOW speed mode is used for large zoom range,  the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. Also the one-key to home function will allow the gimbal returning to initial position automatically and rapidly.
Additionlly,  there is an optional function: PZA6S can be equipped with an Auto Object Tracking Module(AOTM),which will enable the pilot to track static/moving objects very easily. Further more,the AOTM is only 40 grams,it's not too much weight on the drone.
AOTM function explaination : zoom in and put the object you want to track in the screen,move the cursor to the object and lock it via controller,and then the camera will track it automatically.

Main Features:
1, 3-Axis ultra stabilization with encoders FOC motor control;
2, Adjustable gimbal speed control from high to low;
3, Support PWM control and SBUS control;
4, Support camera control:zoom,record,trigeer,power on/off;
5, Support one-key back to home function;
6, Integrative wire box for RC receiver and video output;
7, Extremely light weight of 650g;
8, Auto object tracking(optional)

Voltage 3S - 4S IDDQ 330mA@12V
IDDT 450mA @12V Temp -10~+50 °C
Dimensions 188(L)x138.5(W)x152(H)mm Weight 650g

Pitch angle range of action:-90°~+90°
Roll angle range of action:-85°~+85°
Yaw angle range of action:-150°~+150°
Angle jitter:pitch and roll direction±0.02° ,horizontal direction ±0.03°

Gimbal Dimension:

Gimbal Signal Wire Box:

Object Tracking Function (Optional):

1、Function description
Build-in normalization ,cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target.
Support custom characters of user OSD, adaptive gate, cross cursor,trace information display.
2、Tracking performance
1)Update rate of deviation pixel 50Hz
2)Output delay of deviation pixel <15ms
3)Minimum target contrast 5%
4)the minimal signal-to-noise ratio ( SNR) 4
5)Minimum target size 16*16 pixel
6)Maximum target size 160*160 pixel
7)Tracking speed 32 pixel/frame
8)The mean square root values of pulse noise in the target position<0.5 pixel
